The Pavilions, Caledonian Road

The Pavilions transforms a highly constrained and long-neglected 1.9-hectare brownfield site – a former railway embankment in north London, bound by the East Coast mainline and cleared for the construction of the Channel Tunnel Rail Link – into 156 new homes set within a thriving urban woodland. With 35% affordable housing, the scheme is designed to a high standard of sustainability, incorporating renewable energy, rainwater harvesting, recycled cladding, and extensive green infrastructure.

The site was purchased by the authorities in 1996 to allow the construction of the Channel Tunnel Rail Link (CTRL) into King’s Cross St Pancras, which runs in a tunnel underneath the site at a shallow depth. The remainder of the steeply sloped site includes a Site of Importance for Nature Conservation (SINC) and a vacant end-terrace plot which falls within a conservation area along Caledonian Road.

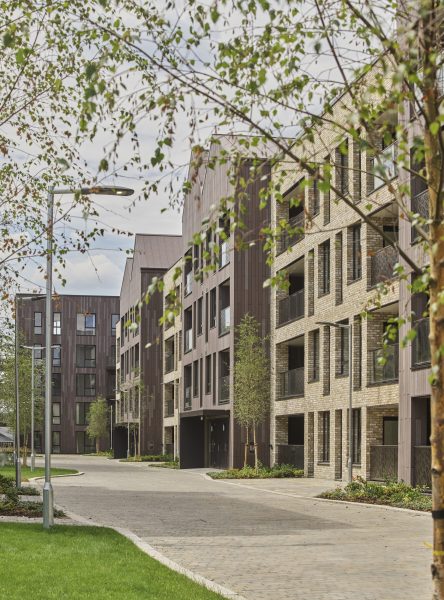

We designed seven new residential buildings, ranging from 3 to 6 storeys, arranged in a linear configuration running parallel to the railway line. The prefabricated steel-framed structures are lightweight, sitting gently on the land to accommodate the CTRL tunnel below. Composed of interlocking forms clad in brick and recycled tile cladding, the buildings have metal patterned fretwork that invokes the wrought-iron railings found throughout the surrounding Barnsbury conservation area. The homes are generously sized, with rooms well in excess of current space standards, and feature balconies overlooking the newly planted woodland on site.

At the site entrance on Caledonian Road, we created a new end-terrace building sympathetic to the local Victorian terraces in the conservation area, containing commercial space, flats and an energy centre supplying hot water to the site – calibrated at a lower and more efficient temperature due to the site-wide implementation of underfloor heating. The steeply sloped terrain presented a significant challenge for inclusivity: a fully step-free, wheelchair accessible route was carefully threaded through the entrance sequence, ensuring all residents and visitors can move freely and independently throughout the development.

Protecting and enhancing the natural ecology of the site was a crucial part of the project. A biodiverse landscaping scheme included 2,408 trees and shrubs across seven unique habitat types, the eradication of widespread Japanese Knotweed infestation, and the creation of a nature trail to be used by local schools, complete with a bird hide. Climbing plants, green walls and green roofs serve to integrate the landscape and built form. Local school groups were on site during construction to help plant trees and plan the nature trail, fostering a genuine connection with the local community and engaging a wide range of local residents in the transformation of this once-neglected pocket of north London.
